Product Features:

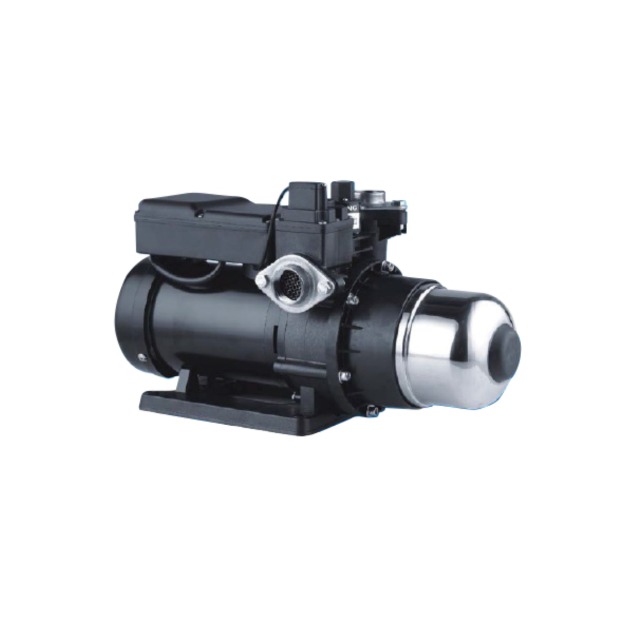

1. PumpMate's PB pump is a complete, all-in-one unit, consisting of centrifugal pump, motor, pressure tank and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operrates continuously until water is not required.
2. Compact design and quiet operation make the PB series suitable for many applications.
3. The PB is constructed from the top-quality corrosion resistant materials.
4. Pump has built-in dry-run shut off with automatic reset function.
5. The motor has built-in thermal overload to protect against high operating temperatures and over current. (Single phase motor only)
6. The PB has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
7. The pumps will lift water up to 7.6M, with foot valve and pump suction piping filled with water..
Operating Conditions:
1. Ambient temperature: Max. +40℃
2. Liquid temperature: +4℃ ~ +40℃
3. System Pressure: Max. 8.5kg/cm²
4. Relative humidity: Max. 85% (RH)
5. Under normal operation, it is not necessary to adjust the pressure unless the cut in pressure in higher than preset activation point (refer to speciation).
Applications:
The coolant pumps are designed for industrial use, particularly for pumping of cooling lubricants circularly for machine tools as the main applications the following mentioned and many others. It is suitable to transfer water, coolant, light oil and other clean, non-aggressive liquids.
