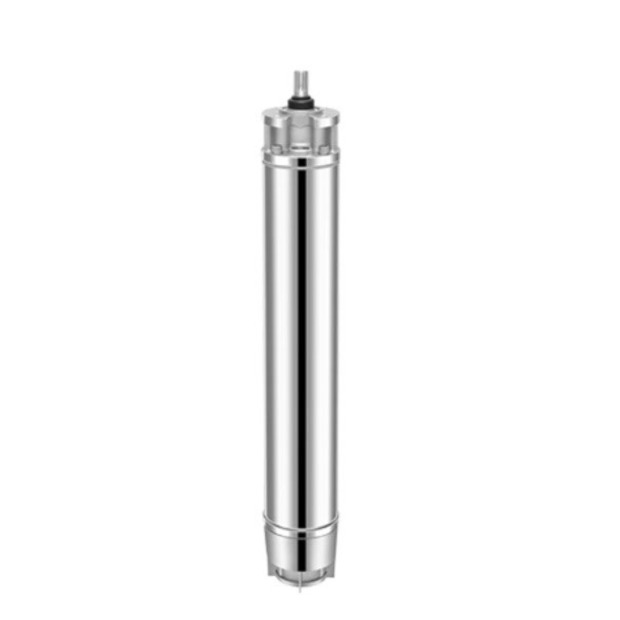

PumpMate's DMC 6" series Canned Type Water-Filled Deep Well Submersible Motors are designed for directly connecting with submersible pumps for groundwater and other submerged pumping applications.

1. Cooled and lubricated by pure water.

2. Hermetically-Sealed windings and encapsulated resin filled stator for excellent insulation.

3. Made in AISI 304 stainless steel for all parts in contact with water for corrosion resistance.

4. With removable waterproof cable connector, for fast and easy maintenance.

5. Mechanical face seal at shaft exit..

6. Kingsbury-type thrust bearing.

7. Filter check valve.

8. Copper bar rotor.

9. All motors are 100% tested.

1. Mounting flange: 6" Double flanged NEMA standard

2. Insulation class: F

3. Degree of protection: IP 68

4. Three phase motor: 4kW ~ 45kW (50Hz)

                                  3.7kW ~ 45kW (60Hz)

5. Motor cable length: 3M

1. Frequency: 50Hz, 60Hz

2. Voltage tolerance: -10%/+6% (50Hz) ; ±10% (60Hz)

3. Y-Δ Start (Pos. of cable 90°)

4. Maximum ambient temperature:

    4~30kW up to 30℃ / 37~45kW up to 50℃

5. Cooling flow rate: Min. 0.16m/sec

6. Maximum starts: 20/hr

7. Maximum operating depth: 300m

8. Suitable for vertical / horizontal operation

9. Axial thrust load:

   *15500N (5.5~30Hp)

   *27000N (40~60Hp)
